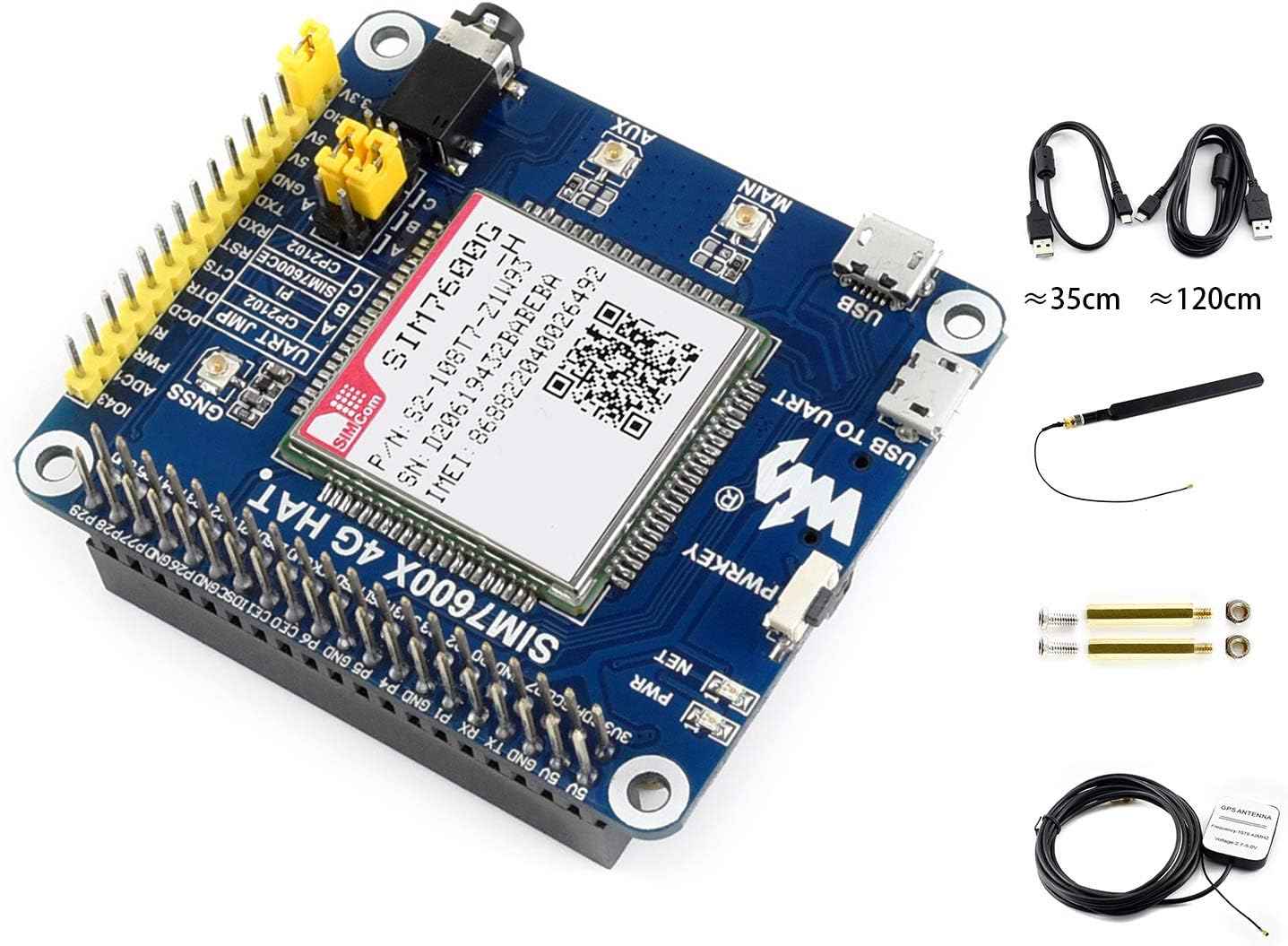

4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/WH and Jetson Nano/Ard/STM32,Based on SIM7600G-H,Support LTE CAT4 up to 150Mbps Wireless Communication etc (Globally Applicable)

Bеѕt Dеаl Prоduсt 4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/WH and Jetson Nano/Ard/STM32,Based on SIM7600G-H,Support LTE CAT4 up to 150Mbps Wireless Communication etc (Globally Applicable) A quick review

So you can check out the other reviews at Amazon.com

only with $ 85.99

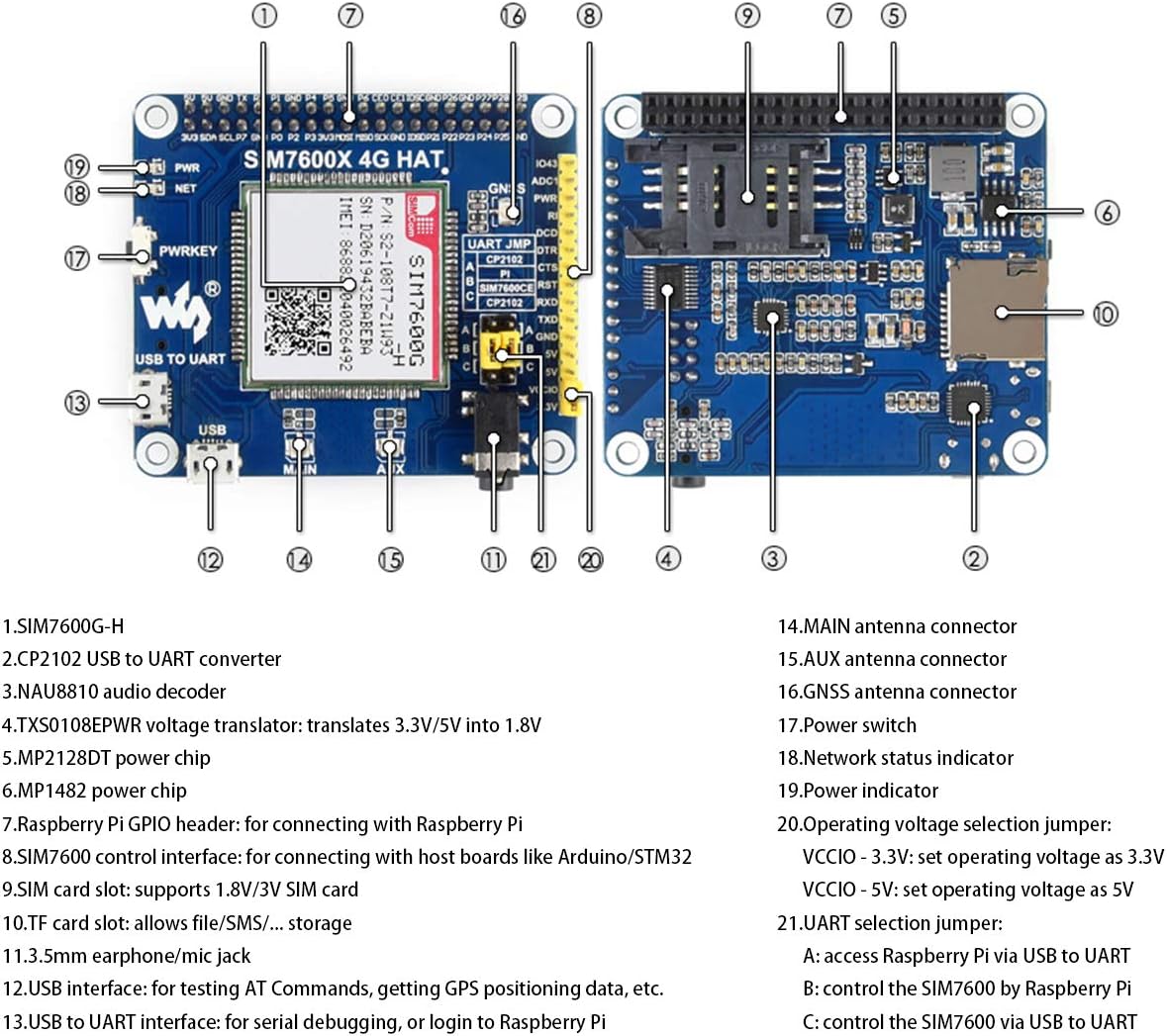

• The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. (Globally Applicable)
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Breakout UART control pins, to connect with host boards like Arduino/STM32.
• Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Onboard CP2102 USB to UART converter, for serial debugging.
• SIM card slot, supports 1.8V/3V SIM card. TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call. 2x LED indicators, easy to monitor the working status. Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper.

Product Description

Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard CP2102 USB to UART converter, for serial debugging
Breakout UART control pins, to connect with host boards like Arduino/STM32
SIM card slot, supports 1.8V/3V SIM card
TF card slot for storing data like files, messages, etc.
Onboard audio jack and audio decoder for making telephone call
2x LED indicators, easy to monitor the working status
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
GNSS Specifications

• Receiver type
  • 16-channel
  • C/A code
• Sensitivity
  • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
  • Cold starts: -148 dBm
• Time-To-First-Fix (open air)
  • Cold starts:
  • Hot starts:
• Accuracy
  • Position:
SMS and Audio Specifications
1.SMS:
Supported types: MT, MO, CB, Text, PDU.
Storage: USIM card and ME (default).
2.Audio feature:
Supports echo cancellation.
Supports noise reduction.
Other Specifications
Power supply: 5V
Operating voltage: 5V/3.3V (configured via jumper)
Operating temperature: -30°C ~ 80°C
Storage temperature: -45°C ~ 90°C
Dimension: 56.21mm x 65.15mm

---

Product information

Package Dimensions	6.18 x 4.29 x 1.73 inches
Item Weight	8.3 ounces
Manufacturer	Waveshare
ASIN	B0852KJ7TL
Item model number	RPi SIM7600G-H 4G HAT Global Version
Customer Reviews	3.9 out of 5 stars 32 ratings 3.9 out of 5 stars
Best Sellers Rank	#3,515 in Single Board Computers (Computers & Accessories)
Date First Available	February 23, 2020
